Softex Plus Oversized Ceiling Panels
Softex Plus Ceiling

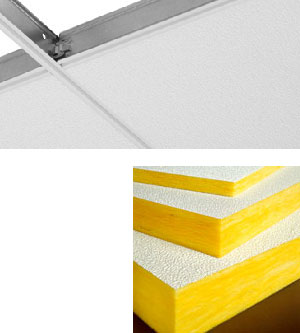

Panels are simply traditional fiberglass ceiling tiles. The core material is a 2-3 lb density fiberglass with a non-perforated
White or Black Vinyl on the face. The panels combine a cleanable surface with premium acoustics, and a smooth white
look. However, Softex Plus differs because we make them any size up to 5' x 5' to order. ISC has the cability
to make custom panels to any size to fit custom lay-in applications. Popular sizes include 2' x 5', 2.5'
x 5', 4' x 4', and 5' x 5'. Any other custom size is available as well upon request and the panels
come in a variety of thicknesses starting at 1" and going upwards of 3" thick. Call one of our Sales People today to discuss your custom job today!!
Or call toll free
888-782-5011
|  | |
| | |
Features and Benefits
-
Medium density fiberglass with textured vinyl
facing. -
Wide selection
of facings. -
Variety
of thickness and sizes including custom and metric. -
Square edge for use with 15/16" and 9/16" wide ceiling suspension systems.
-
Excellent sound absorption qualities.
-
Available
perforated and non-perforated. -
High sound attenuation (CAC) properties when specified with optional foil backing.
-
High
light reflectance (LR-1).
| -
Class A per ASTM E 84. -
High R value; panels insulate and save energy. -
Humidity Resistant (RH 95). Resistant
to 95% relative humidity at 104° F. -
Panels are moisture resistant - will not sag, warp, shrink, chip, crack, or dent. -
Can be installed during "wet" phases
of construction. -
Excellent
durability. -
Vinyl
facing provides a washable non-porous surface. -
Panels are flexible and lightweight making installation fast and easy. -
Standard 25 Year Limited warranty.
|
|
Product Selector
| | |
| Per Carton |
| |
Product Number | Panel Size | Pieces |
Feet |
Weight |
| 5/8" Thick |
STV-1010 |
24"
x 24" | 24 | 96 |
24 |
| |
STV-1011 |
24" x 48" |
12 |
96 |
24 |
| | | |
|
|
|
| 1" Thick |
STV-1040 |
24" x 24" |
24 |
96 |
34 |
| | STV-1041 |
24"
x 48" | 12 | 96 |
34 |
| |
STV-1042 |
48" x 48" |
12 |
192 |
67 |
| | | |
|
|
|
| 2" Thick |
STV-1080 |
24" x 24" |
12 |
48 |
33 |
| | STV-1081 |
24"
x 48" | 6 | 48 |
33 |
| |
STV-1082 |
48" x 48" |
6 |
96 |
60 |
| | | |
|
|
|
| 3" Thick |
STV-1090 |
24" x 24" |
8 |
32 |
33 |
| | STV-1091 |
24"
x 48" | 4 | 32 |
33 |
| |
STV-1092 |
48" x 48" |
4 |
64 |
60 |
Physical Data
| |
|
| |
|
| Substrate |
Medium Density Fiberglass |
| Nominal Sizes | 5/8" - 2'x2', 2'x4' |
| |
1" - 2'x2', 2'x4' |
| |
2" - 2'x2', 2'x4', 4'x4' |
| |
3" - 2'x2', 2'x4', 4'x4' |
| |
Metric and Custom Sizes available for all thicknesses |
| Edge Detail | Square | | Fire Performance |
ASTM E 84 Class A |
| Surface Finish | 2 mil Vinyl - White |
| Light Reflectance |
LR-1 per ASTM E 1477 |
| Thermal Resistance |
5/8" R =2.7 1"
R =4.0 2" R =8.7
3" R =13.6 | | Sound Transmission |
5/8"
1"
2"
3" |
| NRC (Perforated) | .70 - .80 .80 -
.90 .90 - 1.00 .95 - 1.05 |
| NRC (Non-perforated) |
.60 - .70
.70 - .80 .80 - .90
.85 - .95 |
| CAC with foil backing) | 20 - 24
20 - 24 20 - 24
24 - 29 |
| Weight |
No foil 5/8"=.20 lbs/sf
1"=.34 lbs/sf 2"=.44 lbs/sf
3"=.65 lbs/sf |
| | Foil 5/8"=.25 lbs/sf 1"=.39
lbs/sf 2"=.49 lbs/sf 3"=.70
lbs/sf | | Backloading |
0.3 lbs. per square foot maximum on 24" x 24" and 24"
x 48" panels only |
| Moisture Resistance |
RH 95°™ |
| | will not exhibit visible warp or sag under conditions not exceeding 95% relative
humidity at 104° F (32° C) per ASTM C367 |
| Suspension
Systems | 15/16"
and 9'16" T-bar Suspension Grid |
| Use |
Suitable for use as an interior ceiling
in conditioned space. |
| |
May be installed during wet phases of construction. |
| Warranty | 25 Year Limited Warranty |
| ASTM
E 1264 Classification | Type
XII, Form 1 Patterns C, E | | |
|
